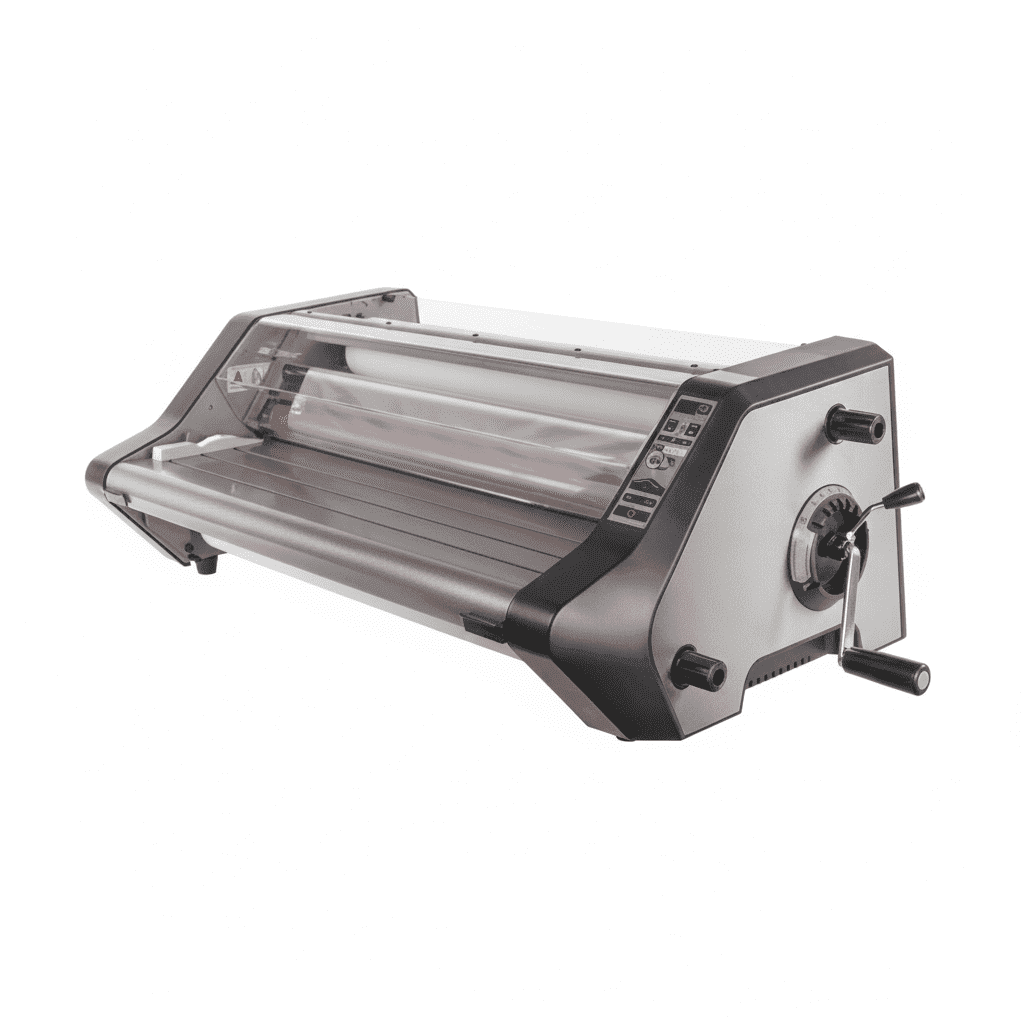

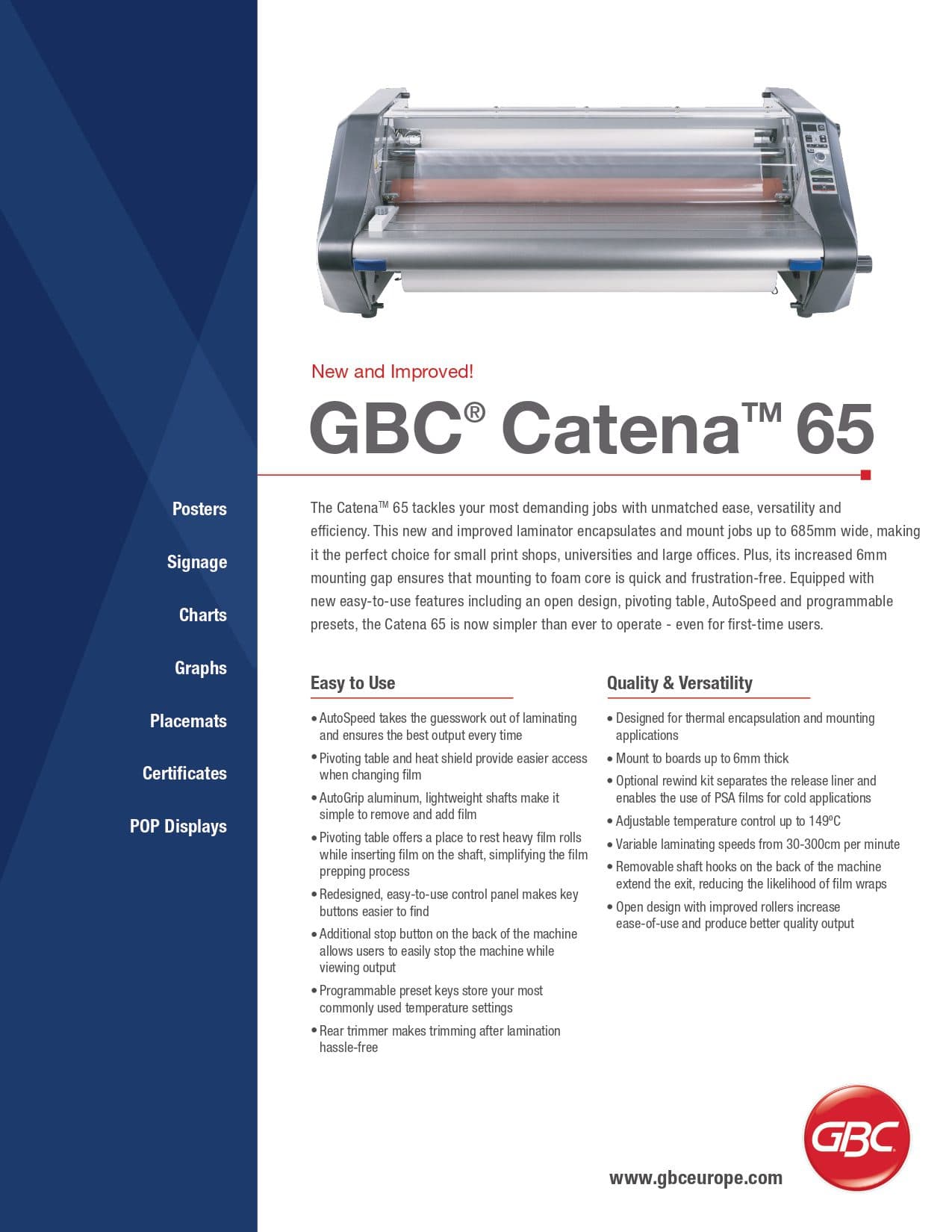

GBC Catena 65 Professional A1 Roll Laminator – 685mm Wide, 6mm Mounting Capacity, AutoSpeed, Thermal & Cold Lamination for Print Shops & Offices

The GBC Catena 65 is a new and improved professional  A1 roll laminator designed to handle demanding laminating and mounting tasks with ease, versatility, and efficiency. Capable of encapsulating and mounting materials up to 685mm wide, it is an ideal solution for small print shops, universities, copy centers, and large offices.

Featuring an increased 6mm mounting gap, the Catena 65 allows fast and frustration-free mounting to foam boards. The laminator includes AutoSpeed technology, which automatically adjusts speed to ensure optimal output quality every time, even for first-time users.

Its open design, pivoting table, AutoGrip lightweight aluminium shafts, and programmable temperature presets make film loading, setup, and operation simple and efficient. The Catena 65 supports both thermal encapsulation and mounting, with optional support for cold PSA films using a rewind kit.

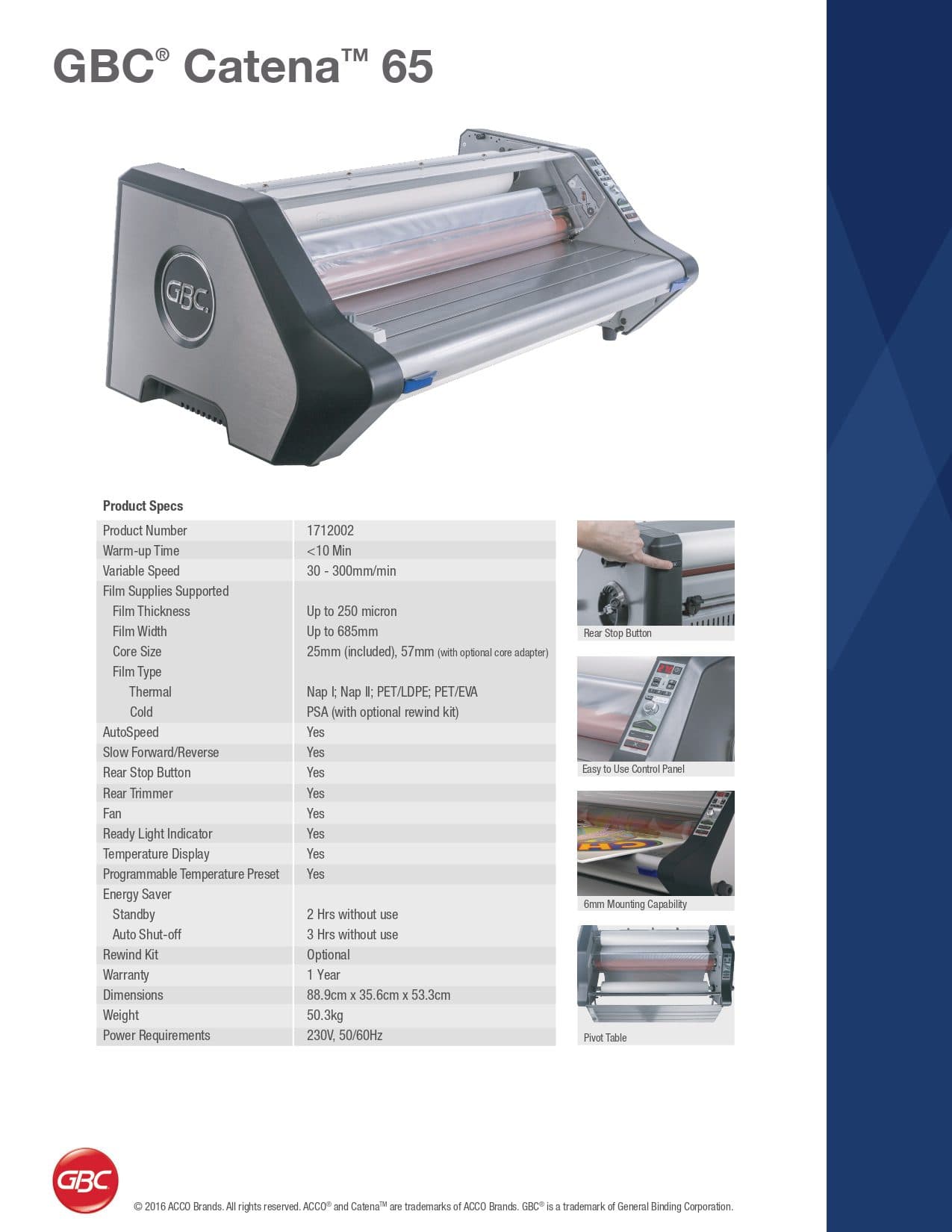

Specifications

• Brand: GBC
• Model: Catena 65
• Product Number: 1712002
• Max Laminating Width: 685 mm
• Mounting Capability: Up to 6 mm board thickness
• Warm-Up Time: Less than 10 minutes
• Laminating Speed: Variable, 30–300 cm/min
• Temperature Control: Adjustable up to 149°C
• Film Thickness Supported: Up to 250 micron
• Film Width Supported: Up to 685 mm
• Core Size: 25 mm (included), 57 mm (with optional core adapter)
• Supported Film Types: Thermal: Nap I, Nap II, PET/LDPE, PET/EVA, Cold PSA films (with optional rewind kit)
• Reverse / Slow Forward: Yes
• Rear Stop Button: Yes
• Rear Trimmer: Yes
• Cooling Fan: Yes
• Ready Light Indicator: Yes
• Temperature Display: Yes
• Programmable Temperature Presets: Yes
• Energy Saving Features: Standby after 2 hours of inactivity, Auto shut-off after 3 hours
• Dimensions (W × D × H): 88.9 × 35.6 × 53.3 cm
• Weight: 50.3 kg
• Power Supply: 230V, 50/60Hz

Key Features

• Laminates and mounts up to 685mm wide materials
• 6mm mounting gap for foam board applications
• AutoSpeed technology for consistent laminating results
• Pivoting table & heat shield for easy film changes
• AutoGrip aluminium shafts for simple film loading
• Programmable temperature presets for frequent jobs
• Rear trimmer for easy post-lamination cutting
• Supports thermal and cold PSA laminating
• Open design and improved rollers for better output quality
